Mesh Glueing in ADINA Mesh glue 의 기능과 활용 범위 프레젠테이션 개요

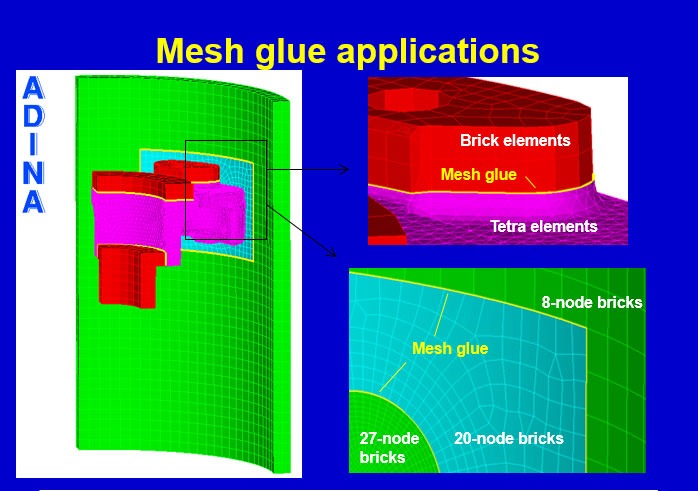

● Mesh glue applications
● Mesh glue의 사용 가능 범위
● Mesh glue의 이론
● Mesh glue의 기능

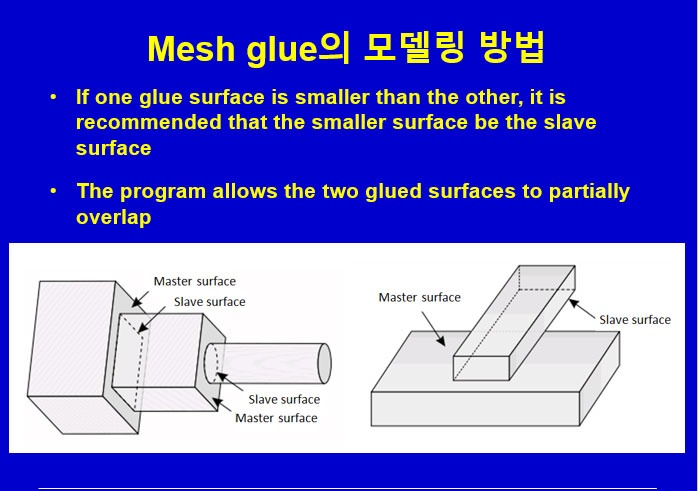

● Mesh glue의 모델링 방법

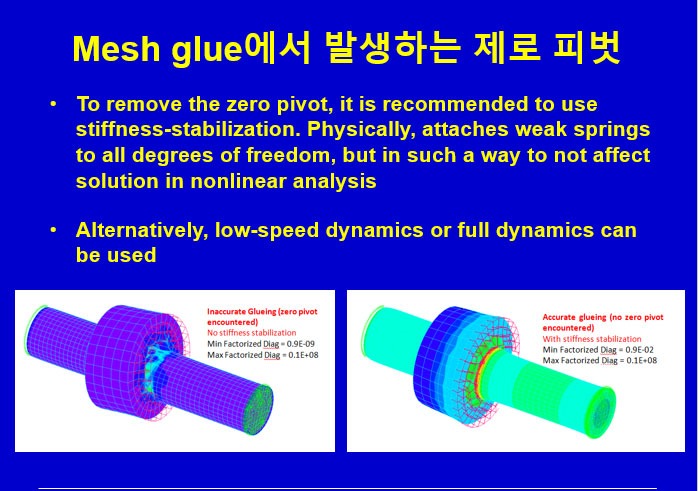

● Mesh glue에서 발생하는 제로 피벗 처리.
● Mesh glue vs. tied contact
● 이 슬라이드는 ADINA 9.2에서 적용되었음
Mesh glue의 사용 가능 범위
● Line-to-line gluing in 2D analysis, or surface-to-surface gluing in 3D analysis
● Only 2D solid elements in 2D analysis
● Only 3D solid, 3D plane stress (membrane), and shell elements in 3D analysis
● Gluing of temperatures in ADINA TMC analysis
● Birth-death on glued surfaces
● Large displacement and large strain analysis
Mesh glue의 이론
● Segment-to-segment algorithm
● One surface is designated the slave and the other the master
● For any admissible variation of surface traction, virtual work done by two glued surfaces is zero
 ● Traction interpolation functions same as slave displacements
● Line-to-line gluing in 2D analysis, or surface-to-surface gluing in 3D analysis
● Only 2D solid elements in 2D analysis
● Only 3D solid, 3D plane stress (membrane), and shell elements in 3D analysis
● Gluing of temperatures in ADINA TMC analysis
● Birth-death on glued surfaces
● Large displacement and large strain analysis
자세한 내용 pdf 파일로 [ 자세히 보기 ]
※ 문의사항은 당사로 연락 부탁 드립니다.
|
Mesh Glueing in ADINA
Mesh glue 의 기능과 활용 범위
프레젠테이션 개요● Mesh glue applications
● Mesh glue의 사용 가능 범위
● Mesh glue의 이론
● Mesh glue의 기능
● Mesh glue의 모델링 방법
● Mesh glue에서 발생하는 제로 피벗 처리.
● Mesh glue vs. tied contact
● 이 슬라이드는 ADINA 9.2에서 적용되었음
Mesh glue의 사용 가능 범위
● Line-to-line gluing in 2D analysis, or surface-to-surface gluing in 3D analysis
● Only 2D solid elements in 2D analysis
● Only 3D solid, 3D plane stress (membrane), and shell elements in 3D analysis
● Gluing of temperatures in ADINA TMC analysis
● Birth-death on glued surfaces
● Large displacement and large strain analysis
Mesh glue의 이론
● Segment-to-segment algorithm
● One surface is designated the slave and the other the master
● For any admissible variation of surface traction, virtual work done by two glued surfaces is zero
● Line-to-line gluing in 2D analysis, or surface-to-surface gluing in 3D analysis
● Only 2D solid elements in 2D analysis
● Only 3D solid, 3D plane stress (membrane), and shell elements in 3D analysis
● Gluing of temperatures in ADINA TMC analysis
● Birth-death on glued surfaces
● Large displacement and large strain analysis
자세한 내용 pdf 파일로 [ 자세히 보기 ]
※ 문의사항은 당사로 연락 부탁 드립니다.
